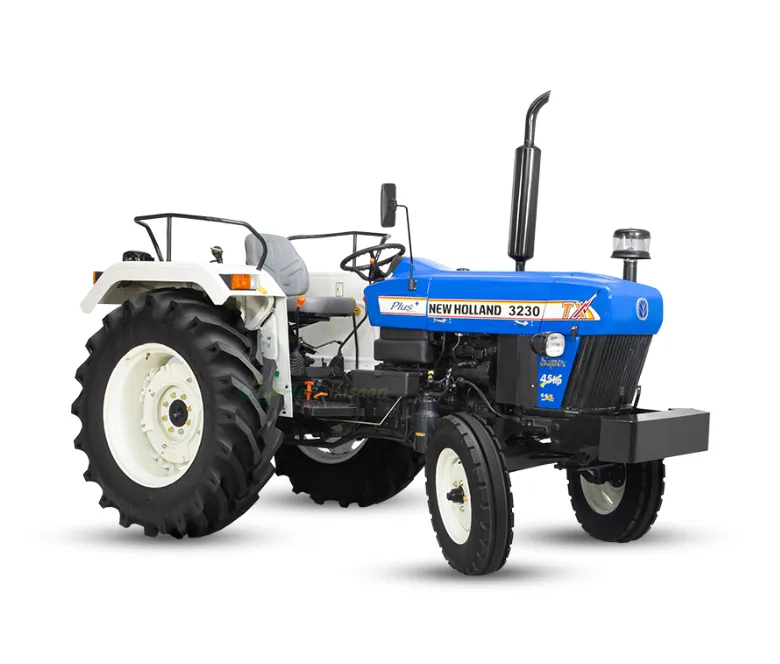

New Holland 3230 TX Super

New Holland 3230 TX Super
New Holland 3230 TX Super

New Holland 3230 TX Super

0 0 Reviews
  • HP Category
     45
  • Capacity CC
     2500
  • Wheel Drive
     2 WD
  • Gear Box
     8 Forward + 2 Reverse / 8 Forward + 8 Reverse
  • Number of Cylinder
     3
  • Steering
     Power Steering

text...

Get on road price More Details

New Holland 3230 TX Super Full Specifications

  • Engine
  • Brakes
  • Steering
  • Fuel Tank
  • Hydraulics
  • Other Inmformations
  • TRANSMISSION
  • Color
  • Dimensions And Weight
  • Power Take Off
  • Wheels And Tyres
Engine
No. Of Cylinder 3
HP Category 45 HP
Capacity CC 2500 CC
Engine Rated RPM 2200 RPM
Cooling Water Cooled
Air Filter Oil Bath with Pre-Cleaner
PTO HP 41
Fuel Pump Inline
Torque 160.7 NM
Brakes
Brakes Oil Immersed Multi Disc Brake
Steering
Type Power Steering
Fuel Tank
Capacity 46 litre
Hydraulics
Lifting Capacity 1800 kg
3 point Linkage Automatic Depth and Draft Control, Mixed Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve.
Other Inmformations
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Options Synchro Shuttle 8F+8R, Potato Special Axle 48", Remote Valve, Paddy Special - Double Metal Face Sealing
Additional Features Heavy Duty Front Axle Support, Deluxe Driver Seat, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, 90 kg HD Front Bumper, Rear weight (32 kg each side), Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform
Warranty 6000 Hours or 6 Year
Status Launched
Price 7.00 Lac*
Fast Charging No
TRANSMISSION
Type Constant Mesh AFD Side Shift
Clutch Single Clutch/Double Clutch with IPTO lever*
Gear Box 8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
Battery 75 Ah
Alternator 35 Amp
Forward Speed 2.5 – 30.81 kmph
Reverse Speed 3.11 – 11.30 kmph
Color
Colors Blue
Dimensions And Weight
Total Weight 1873 KG
Wheel Base 1900 MM
Overall Length 3330 MM
Overall Width 1790 MM
Ground Clearance 390 MM
Turning Radius With Brakes 2800 MM
Power Take Off
Type Eptraa PTO, Reverse PTO & GSPTO
RPM 540S, 540E
Wheels And Tyres
Wheel drive 2 WD
Front 6.00 X 16 / 6.50 X 16
Rear 13.6 X 28 / 14.9 X 28
  • Engine
    • No. Of Cylinder 3
      HP Category 45 HP
      Capacity CC 2500 CC
      Engine Rated RPM 2200 RPM
      Cooling Water Cooled
      Air Filter Oil Bath with Pre-Cleaner
      PTO HP 41
      Fuel Pump Inline
      Torque 160.7 NM
  • Brakes
    • Brakes Oil Immersed Multi Disc Brake
  • Steering
    • Type Power Steering
  • Fuel Tank
    • Capacity 46 litre
  • Hydraulics
    • Lifting Capacity 1800 kg
      3 point Linkage Automatic Depth and Draft Control, Mixed Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve.
  • Other Inmformations
    • Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
      Options Synchro Shuttle 8F+8R, Potato Special Axle 48", Remote Valve, Paddy Special - Double Metal Face Sealing
      Additional Features Heavy Duty Front Axle Support, Deluxe Driver Seat, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, 90 kg HD Front Bumper, Rear weight (32 kg each side), Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform
      Warranty 6000 Hours or 6 Year
      Status Launched
      Price 7.00 Lac*
      Fast Charging No
  • TRANSMISSION
    • Type Constant Mesh AFD Side Shift
      Clutch Single Clutch/Double Clutch with IPTO lever*
      Gear Box 8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
      Battery 75 Ah
      Alternator 35 Amp
      Forward Speed 2.5 – 30.81 kmph
      Reverse Speed 3.11 – 11.30 kmph
  • Color
    • Colors Blue
  • Dimensions And Weight
    • Total Weight 1873 KG
      Wheel Base 1900 MM
      Overall Length 3330 MM
      Overall Width 1790 MM
      Ground Clearance 390 MM
      Turning Radius With Brakes 2800 MM
  • Power Take Off
    • Type Eptraa PTO, Reverse PTO & GSPTO
      RPM 540S, 540E
  • Wheels And Tyres
    • Wheel drive 2 WD
      Front 6.00 X 16 / 6.50 X 16
      Rear 13.6 X 28 / 14.9 X 28

text

Variants
Compare
New Holland 3600-2 TX All Rounder Plus
New Holland 3600-2 TX All Rounder Plus 50 HP
SEND ENQUIRY

PROS & CONS OF New Holland 3230 TX Super

PROS
  • The 45 HP engine is suitable for medium-duty tasks.
  • Fuel-efficient design helps reduce operational costs.
  • Durable and reliable build for long-term performance.
  • High lifting capacity supports heavy implements.
  • Comfortable operator platform for enhanced productivity.
  • Low maintenance costs make it affordable to operate.
CONS
  • The 2WD design limits traction on wet or uneven terrains.
  • Lacks advanced technology and automation features.
  • Moderate speed may not be ideal for fast transport tasks.
  • Basic cabin design without luxury or enclosed options.
  • Heavy Build, May compact sensitive soil.
  • Not suitable for large-scale commercial farming.
